Self-hosted mail server, webmail client and delivery telemetry — in one docker compose up

Quick start · Features · Architecture · Configuration · Deliverability · Contributing · Discussions

---

What is RayMail?

RayMail is a complete, open-source, self-hosted email stack you run on your own VPS. It replaces the usual pile of Postfix + Dovecot + Roundcube + a tracking SaaS with one Docker Compose file:

• A real mail server — RFC-compliant SMTP, IMAP and JMAP from Stalwart, with automatic DKIM key generation.

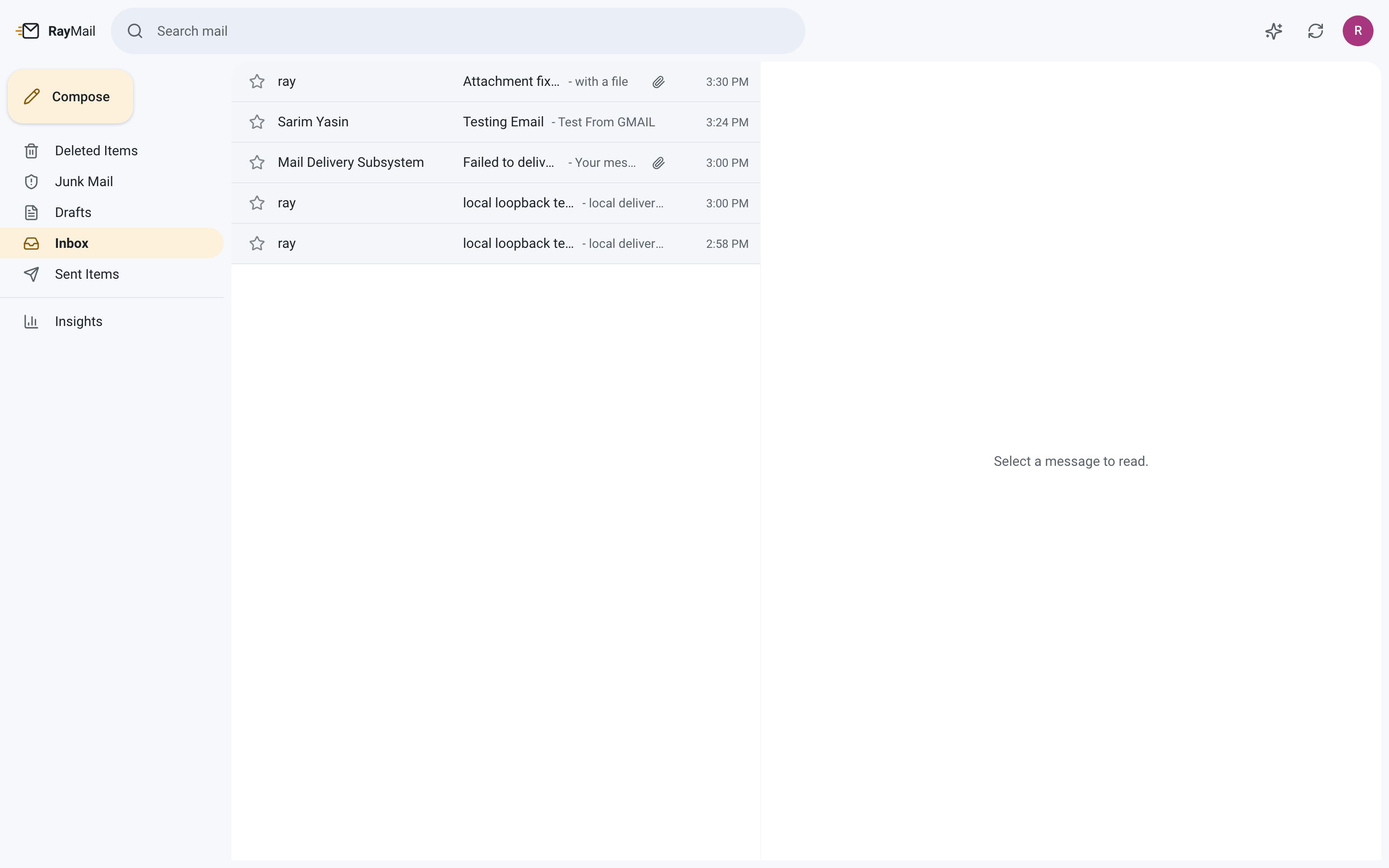

• A modern webmail client — a fast, Gmail-style three-pane workspace built in Next.js 15 and TypeScript.
• Delivery telemetry that is actually yours — open and click tracking, a full queued → sent → delivered → opened → clicked pipeline, and a document vault, all stored locally in SQLite. No third-party tracking pixel, no data leaving your server.
• An optional AI assistant — draft replies, summarise long threads and brief your inbox, with aggressive token budgeting so it stays cheap.

Desktop and mobile clients (Outlook, Apple Mail, Thunderbird, K-9, Gmail app) connect over standard IMAP/SMTP. The webmail speaks JMAP over the internal Docker network, so mail credentials never reach the browser.

---

⚡ Quick start

One command

curl -fsSL https://raw.githubusercontent.com/DeveloperSarim/raymail/main/install.sh | bash

The installer audits your ports, warns you if your provider blocks outbound :25, generates secrets, fixes container volume ownership, starts the stack, completes the mail-server setup handshake and prints the exact DNS records you need.

Manual

Step by step (click to expand)

# 1. clone
git clone https://github.com/DeveloperSarim/raymail.git
cd raymail

# 2. configure
cp .env.example .env
$EDITOR .env          # set MAIL_DOMAIN, MAIL_HOSTNAME, APP_URL

# 3. prepare volumes
#    both containers run unprivileged - root-owned bind mounts are the
#    single most common first-boot failure
mkdir -p stalwart/etc stalwart/data/logs data
sudo chown -R 2000:2000 stalwart/etc stalwart/data   # stalwart runs as uid 2000
sudo chown -R 1001:1001 data                         # web runs as uid 1001

# 4. start
docker compose up -d

# 5. finish setup, then print your DNS records
./deploy/dns-records.py

# 6. TLS + reverse proxy
sudo ./deploy/setup-tls.sh

# 7. health check
./deploy/verify.sh

Requirements

	Minimum
OS	Any Linux with Docker (Ubuntu 22.04+ tested), or macOS for local development
RAM	1 GB (2 GB comfortable)
Disk	5 GB + your mail
Ports	25, 465, 587, 993 free, plus two loopback ports
DNS	A domain you control

---

✨ Features

📬 Mail engine Inbound SMTP on :25 Submission on :587 (STARTTLS) and :465 (implicit TLS) IMAP over TLS on :993 JMAP + WebSocket for the webmail ManageSieve on :4190 Automatic DKIM (RSA + Ed25519) SPF and DMARC record generation Smarthost relay for hosts that block :25	📊 Telemetry 1×1 zero-cache open pixel Signed click redirector — no open-redirect Full delivery pipeline, reconciled against the MTA Open/click rates, bounce tracking Per-message audit trail with IP and user agent Document vault indexing every attachment All of it in local SQLite
💌 Webmail Gmail-style three-pane workspace Search, star, archive, delete Sandboxed message reader — no CSS bleed, no XSS Remote images blocked until you ask Attachment previews (images, PDF, text) Composer with drag-and-drop and CSS inlining ⌘/Ctrl + Enter to send Responsive down to a phone	🤖 AI assistant (optional) Draft a new email from a one-line prompt Draft a reply from the thread Per-message summary with extracted actions Whole-inbox overview Four tones: professional, friendly, direct, apologetic Token-budgeted — see the table below Disabled cleanly when no API key is set

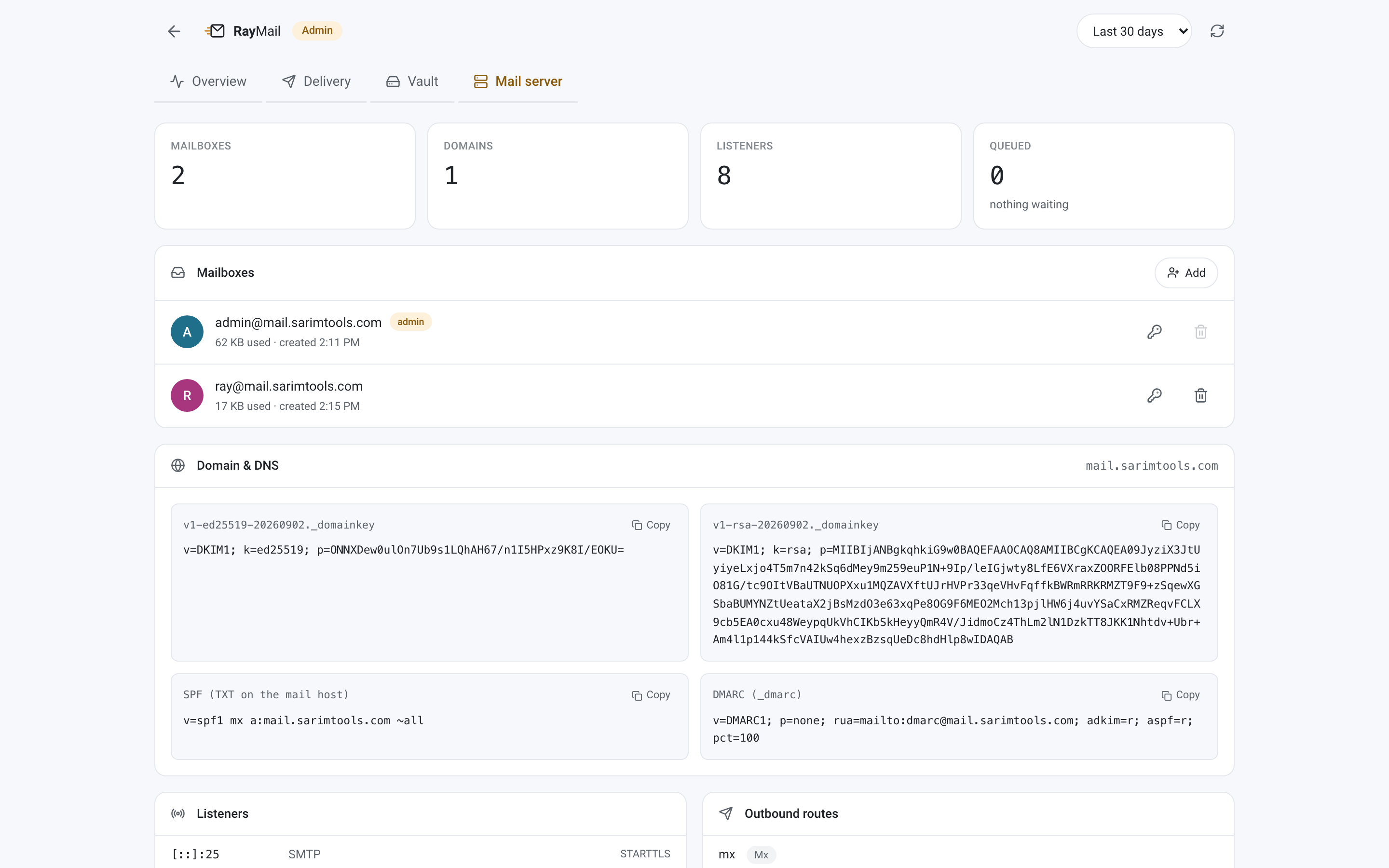

_{The built-in mail server console — create mailboxes, rotate passwords, copy DNS records, inspect listeners and the outbound queue.}

---

🏗 Architecture

flowchart LR
    MX[Sending MX]
    C[Outlook / Apple Mail / Thunderbird]
    B[Browser]
    P[Reverse proxy 443]
    W[RayMail web - Next.js]
    SW[Stalwart - 25 465 587 993]
    DB[(SQLite telemetry)]
    R[Smarthost relay 587]

    MX -->|inbound SMTP| SW
    C -->|IMAP and SMTP| SW
    B --> P
    P --> W
    W <-->|JMAP| SW
    W --> DB
    SW -->|outbound| R
    R --> MX

Loading

Delivery pipeline — a message only moves forward; bounced is terminal from anywhere.

flowchart LR
    Q[queued] --> S[sent]
    S --> D[delivered]
    D --> O[opened]
    O --> C[clicked]
    Q --> X[bounced]
    S --> X
    D --> X

Loading

Port map

Port	Bind	Purpose	Exposed
25	0.0.0.0	Inbound MX	🌍 Public
465	0.0.0.0	SMTP submission, implicit TLS	🌍 Public
587	0.0.0.0	SMTP submission, STARTTLS	🌍 Public
993	0.0.0.0	IMAP, implicit TLS	🌍 Public
3880	127.0.0.1	Webmail + telemetry API	🔒 Proxy only
3881	127.0.0.1	Mail server admin + JMAP	🔒 Loopback only

RayMail never binds :80 or :443 — those stay with whatever web server you already run.

Project layout

raymail/
├── docker-compose.yml        # stalwart + web
├── install.sh                # one-command installer
├── deploy/
│   ├── setup-tls.sh          # certbot + reverse-proxy vhost
│   ├── configure-relay.py    # smarthost for blocked :25
│   ├── dns-records.py        # prints records incl. live DKIM
│   └── verify.sh             # read-only health check
└── web/src/
    ├── app/                  # routes: pages at /, API under /api
    ├── components/           # presentational UI
    ├── hooks/                # TanStack Query bindings
    ├── lib/                  # db, telemetry tokens, session crypto
    ├── services/             # JMAP + Stalwart admin + DeepSeek clients
    └── types/                # domain models

---

⚙️ Configuration

Everything lives in .env.

Variable	Required	Purpose
MAIL_DOMAIN	✅	Domain RayMail handles mail for
MAIL_HOSTNAME	✅	Public hostname, used in SMTP greetings
APP_URL	✅	Public URL, used for tracking links
TELEMETRY_SECRET	✅	Signs tracking tokens and encrypts sessions
STALWART_ADMIN_USER / _PASSWORD	✅	Administrator mailbox
RELAY_HOST / _PORT / _USERNAME / _PASSWORD	⚠️	Smarthost — required when :25 is blocked
DEEPSEEK_API_KEY	➖	Enables the AI assistant
DEEPSEEK_MODEL	➖	Defaults to deepseek-chat

Desktop client settings

Incoming   IMAP    mail.example.com   993   SSL/TLS
Outgoing   SMTP    mail.example.com   587   STARTTLS
Username   the full address, you@mail.example.com
Password   your mailbox password
Auth       normal password, required for outgoing

Works with Microsoft Outlook, Apple Mail, Thunderbird, K-9 Mail and the Gmail app.

AI token budgeting

The cost control is in what is not sent to the model:

Lever	Effect
HTML stripped to text	Drops markup, styles and tracking pixels before the model sees anything
Quoted history removed	A reply chain repeats the thread on every message; it is paid for once
Character budget	Bodies capped at ~6k characters, biased to the head where the ask lives
Overview uses envelopes only	Sender + subject + preview — hundreds of tokens instead of tens of thousands
Results cached on a content hash	Re-opening a message costs nothing; only changed mail is re-summarised
max_tokens per task	Every task has a natural length and is capped to it

Actual spend is shown in the admin dashboard, split into tokens in, tokens out, and results served from cache.

---

📮 Deliverability

Self-hosted mail lands in spam for a small number of fixable reasons. In order of impact:

1. PTR mismatch — forward and reverse DNS must agree. Set the reverse record for your IP to your mail hostname.
2. Missing or misaligned DKIM/SPF/DMARC — ./deploy/dns-records.py prints the exact records, including your live DKIM public keys.
3. Blocked outbound :25 — many providers block it. RayMail then relays through a smarthost on :587; inbound :25 is unaffected.
4. DMARC alignment — if you relay, your Return-Path is usually a subdomain. Use relaxed alignment (adkim=r; aspf=r) or every relayed message fails.
5. A brand-new domain has no reputation. Start with p=none, send slowly, and tighten to p=quarantine once reports come back clean.

Two questions come up more than any other, both answered in detail in Discussions: mail still goes to spam with DKIM/SPF/DMARC set · first boot fails with "Permission denied"

Troubleshooting matrix

Symptom	Likely cause	Check
Outbound mail stuck in queue	:25 egress blocked, no relay set	RELAY_HOST in .env
Container exits on first boot	Root-owned bind mounts	chown -R 2000:2000 stalwart/
certbot fails	A record missing or not propagated	dig +short A mail.example.com
Outlook rejects the password	Using the local part, not the full address	Log in as you@mail.example.com
465/993 silent, no handshake	No certificate installed yet	Run ./deploy/setup-tls.sh
TLS warning in a mail client	Server started before the cert existed	docker restart raymail-stalwart
Opens never register	Recipient blocks remote images	Expected — clicks still track
Mail goes to spam	See the five points above	Gmail → Show original
Reverse proxy won't reload	Vhost syntax	apache2ctl configtest

---

🧪 Development

cd web
npm install
npm run dev        # http://localhost:3000
npm run typecheck  # tsc --noEmit, strict mode
npm test           # token forgery + open-redirect guards

The test suite runs on Node's built-in runner with no framework. It covers the security boundary that matters most: tracking tokens are HMAC-signed, so opens and clicks cannot be forged and the click redirector cannot be repointed at another host.

---

🤝 Contributing

Contributions are welcome — issues, features and documentation alike.

1. Fork the repository and create a branch: git checkout -b feature/my-change
2. Keep TypeScript strict — npm run typecheck must pass
3. Add a test when you touch security or money paths
4. Commit with a clear message and open a pull request

Good first issues

• Server-side JMAP search (the list currently filters client-side)
• Bounce ingestion from the Stalwart queue into the telemetry pipeline
• Multi-account support in the webmail
• A nginx and a Caddy variant of deploy/setup-tls.sh
• Thread grouping in the message list

---

📄 License

Released under the MIT License. Use it, fork it, ship it.

🙏 Built on

Stalwart Mail Server · Next.js · Tailwind CSS · TanStack Query · Zustand · Lucide
