WareOps Bot Simulation — Autonomous Warehouse Robotics Suite

An end-to-end ROS 2 Humble autonomous warehouse robotics system featuring Gazebo Ignition simulation, Nav2 autonomous navigation, a 2-DOF active vision QR/barcode scanner, inventory verification, gamepad teleoperation, autonomous delivery dispatching, and web-based management dashboards.

📺 Simulation Demonstration

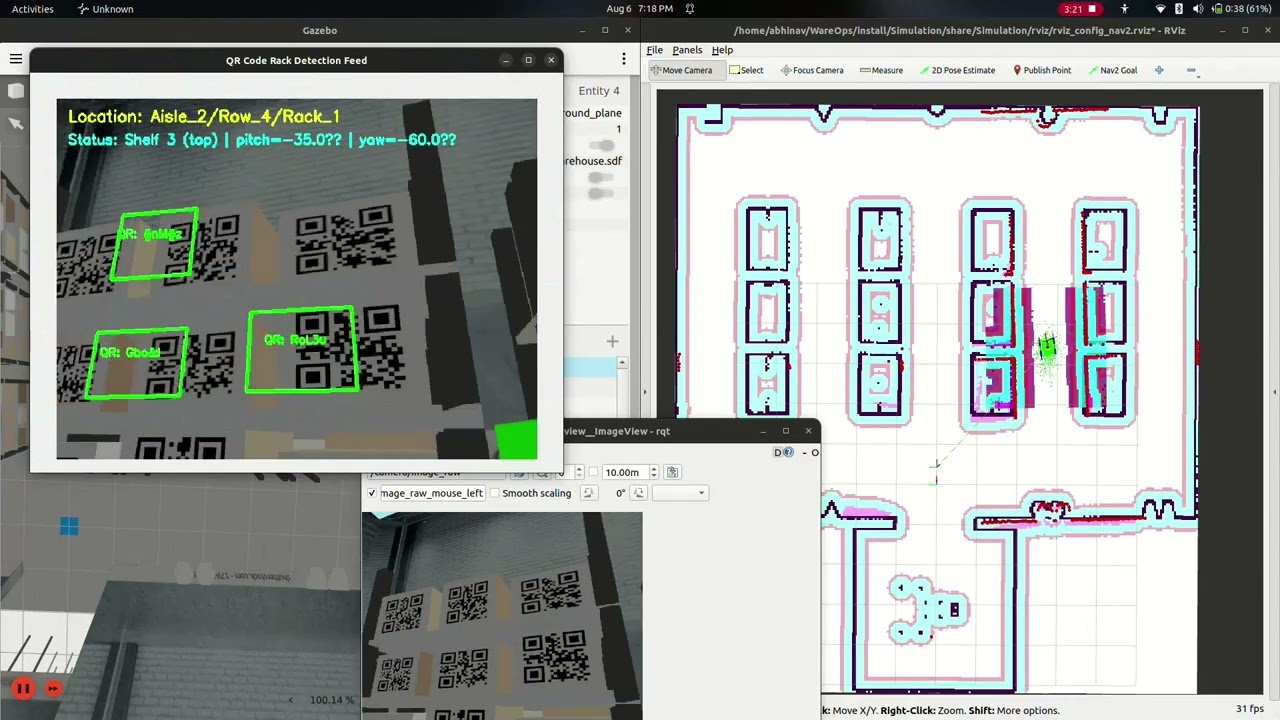

🎬 Watch the full video demonstration on YouTube: WareOps Bot Simulation Video

🌟 Key Features

🤖 Mobile Robot Simulation: Differential drive robot with a 2-DOF active camera mast (Yaw pan + Pitch tilt) spawned in a multi-aisle warehouse environment (warehouse.sdf).
🗺️ Nav2 Autonomous Navigation: Integrated AMCL localization, static occupancy grid mapping (New_map.pgm), costmaps, and path planning for precise rack-to-rack transit.
🚀 Unified System Launch Orchestration (wareops_system_launch): Centralized ROS 2 launch package with delayed initial pose estimation, automatic browser tab launcher, and multi-node lifecycle synchronization.
👁️ Active Vision Rack Scanning: Dual-engine vision pipeline (OpenCV WeChat QR + standard barcode decoders) with automated vertical and horizontal gimbal sweeps across 4-tier warehouse racks.
📦 Automated Stock Audit & Logging: Compares scanned QR codes with ground-truth inventory database (warehouse_database.xlsx), generating verified inventory reports (scanned_inventory.csv) and error logs (mismatch_log.csv).
🌐 Two Web Dashboard Suites:
1. Stock Navigation & Inventory Audit Web Dashboard (warehouse_stock_navigation_bot): Real-time camera overlay, interactive layout map, product search catalog, and one-click "Full Warehouse Detection" tour trigger.
2. Autonomous Delivery & Teleop Web Dashboard (scripts/web_dashboard.py): Interactive 2D facility map with corner positions (NW, NE, SW, SE) and waypoints, real-time /delivery_status and /delivered event logging, virtual teleop joystick, and camera gimbal pan/tilt sliders.
🎮 Joystick Teleoperation: Dual-stick controller driving, speed scaling, camera angle adjustments, and one-touch target triggers.
🔄 Autonomous Tour & Dispatch Scripts:
- scripts_1/full_tour.py: Master automated warehouse inspection tour that sequentially visits all target racks, commands gimbal sweeps, waits for verification completion, and returns home.
- scripts/: Modular navigation scripts for targeted positions (Rack R4 A3, R4 A2, R3 B3), corner locations (NE, SE), waypoints (Alpha, Beta), and home docking.

📁 Repository & Package Architecture

WareOps/
└── src/
    ├── wareops_system_launch/                  # Centralized System Launch Orchestration
    │   ├── launch/
    │   │   ├── full_system.launch.py           # Full system: Gazebo + Nav2 + Teleop + Scanner + Stock Web Dashboard
    │   │   └── robot_webcontroller.launch.py   # Simulation + Nav2 + Delivery & Teleop Web Dashboard
    │   ├── package.xml
    │   └── setup.py
    │
    ├── Simulation/                             # Gazebo environment, URDFs, Nav2 config, RViz
    │   ├── config/                             # Nav2, SLAM, and Gazebo bridge parameters
    │   ├── launch/                             # Core simulation launch files (display_navigation.launch.xml)
    │   ├── maps/                               # Warehouse 2D occupancy grid maps (New_map.pgm / New_map.yaml)
    │   ├── rviz/                               # Custom RViz2 display profiles
    │   ├── urdf/                               # Robot Xacro model with 2-DOF camera mast
    │   └── world/                              # Warehouse SDF world model with QR racks
    │
    ├── active_vision_scanner_simulation/       # Autonomous Active Vision Scanner Node
    │   ├── active_vision_scanner_simulation/   # Multi-candidate vision pipeline & state machine
    │   └── launch/                             # Active scanner launch configuration (scanner_system.launch.py)
    │
    ├── joy_teleop_simulation/                  # Gamepad / Controller Teleop Node
    │   ├── joy_teleop_simulation/              # Axis/button velocity & gimbal command mapper
    │   └── launch/                             # Teleop launch configuration (teleop_sim.launch.py)
    │
    ├── Warehouse_stock_navigation_bot/         # Inventory Database & Stock Web Dashboard Server
    │   ├── warehouse_stock_navigation_bot/     # Flask web app & stock navigator node
    │   └── config/                             # Map assets (New_map.pgm), partition grids & catalog JSON
    │
    ├── scripts/                                # Autonomous Delivery, Waypoint Navigation & Web Dashboard
    │   ├── web_dashboard.py                    # Autonomous Robot Ready & Delivery Web Dashboard (Port 5000)
    │   ├── navigate_to.py                      # CLI argument-based target navigation runner
    │   ├── initialise.py                       # Delayed Nav2 initial pose setter
    │   ├── go_to_home.py                       # Navigates to home origin (0.0, 0.0)
    │   ├── go_to_rack_r4_a3.py                 # Navigates to Position 1 (Rack R4 A3)
    │   ├── go_to_rack_r4_a2.py                 # Navigates to Position 2 (Rack R4 A2)
    │   ├── go_to_rack_r3_b3.py                 # Navigates to Position 3 (Rack R3 B3)
    │   ├── go_to_waypoint_alpha.py             # Navigates to Central Aisle Waypoint Alpha
    │   ├── go_to_waypoint_beta.py              # Navigates to East Corridor Waypoint Beta
    │   ├── go_to_ne_corner.py                  # Navigates to North-East Corner
    │   └── go_to_se_corner.py                  # Navigates to South-East Corner
    │
    ├── scripts_1/                              # Barcode & QR Inspection Tour Scripts Suite
    │   ├── full_tour.py                        # Automated inspection loop triggered by Stock Web Dashboard
    │   ├── initialise.py                       # Initial pose setter
    │   ├── go_to_rack_r4_a3.py                 # Targeted inspection script for Rack R4 A3
    │   ├── go_to_rack_r4_a2.py                 # Targeted inspection script for Rack R4 A2
    │   └── go_to_rack_r3_b3.py                 # Targeted inspection script for Rack R3 B3
    │
    └── warehouse_database.xlsx                 # Ground truth stock inventory Excel database

📦 Package Summary

Package / Directory	Description	Primary Launch / Executable
`wareops_system_launch`	Master launch orchestration coordinating simulation, navigation, scanner, and web interfaces.	`ros2 launch wareops_system_launch full_system.launch.py`
`Simulation`	Gazebo warehouse world, robot URDF/Xacro, Nav2 costmaps, AMCL, and RViz profiles.	`ros2 launch Simulation display_navigation.launch.xml`
`Warehouse_stock_navigation_bot`	Stock navigator node, inventory catalog search, and full warehouse tour trigger on Port 5000.	`ros2 launch warehouse_stock_navigation_bot stock_navigator.launch.py`
`active_vision_scanner_simulation`	Active vision QR/barcode scanner with 2-DOF gimbal sweep logic and inventory audit logger.	`ros2 launch active_vision_scanner_simulation scanner_system.launch.py`
`joy_teleop_simulation`	Gamepad driver mapping axes/buttons to robot drive velocity and camera gimbal angles.	`ros2 launch joy_teleop_simulation teleop_sim.launch.py`
`scripts`	Autonomous delivery dashboard, waypoint transit scripts, and delivery event publishers.	`python3 scripts/web_dashboard.py`
`scripts_1`	Automated barcode/QR code active rack inspection tour scripts suite.	`python3 scripts_1/full_tour.py`

🛠️ Prerequisites & Installation

1. System Requirements

Ubuntu 22.04 LTS
ROS 2 Humble Hawksbill (Desktop Installation)
Gazebo Ignition (Fortress / Garden)

2. ROS 2 Dependencies

Install required ROS 2 packages:

sudo apt update
sudo apt install -y \
  ros-humble-ros-gz-sim \
  ros-humble-ros-gz-bridge \
  ros-humble-navigation2 \
  ros-humble-nav2-bringup \
  ros-humble-joy \
  ros-humble-tf-transformations \
  ros-humble-rmw-cyclonedds-cpp

3. Python Dependencies

Install required Python libraries:

pip3 install opencv-python pandas openpyxl flask pyzbar transforms3d

🚀 Quick Start Guide

1. Build the Workspace

Clone the repository and build using colcon:

mkdir WareOps
cd WareOps
git clone https://github.com/WareOps/WareOps_bot-Simulation-.git
mv WareOps_bot-Simulation- src
colcon build
source install/setup.bash

2. Launch Option A: Full Warehouse System (Stock Tracking & Inspection)

Launch the complete autonomous inspection stack (Gazebo, Nav2, Teleop, Active Scanner Node, Stock Web Dashboard, Auto Pose Init, and rqt_image_view):

ros2 launch wareops_system_launch full_system.launch.py

Stock Web Dashboard: Automatically opens at http://localhost:5000.
Click "🚀 Full Warehouse Detection" to trigger the autonomous inspection tour (scripts_1/full_tour.py).
Monitor live scanner annotated feeds via rqt_image_view or the web dashboard.

3. Launch Option B: Delivery & Teleop Web Dashboard System

Launch Gazebo, Nav2, Teleoperation, Auto Pose Init, and the standalone Delivery Web Dashboard:

ros2 launch wareops_system_launch robot_webcontroller.launch.py

Delivery Web Dashboard: Open http://localhost:5000.
Select predefined positions (Position 1, Position 2, Position 3, Waypoint Alpha, Waypoint Beta, Corners, Home).
Drive the robot manually using the virtual joystick or adjust the camera gimbal pan/tilt sliders.
Track real-time dispatch progress via the /delivery_status and /delivered event log.

📍 Target Positions & Waypoints Reference

Target ID	Name / Description	Target Coordinates $(x, y, \text{yaw})$	Navigation Script
`position_1`	Position 1 (Rack R4 A3)	`(1.922, -2.745, 0.051)`	`python3 scripts/go_to_rack_r4_a3.py`
`position_2`	Position 2 (Rack R4 A2)	`(3.658, -2.684, 0.044)`	`python3 scripts/go_to_rack_r4_a2.py`
`position_3`	Position 3 (Rack R3 B3)	`(2.981, -2.825, 3.097)`	`python3 scripts/go_to_rack_r3_b3.py`
`waypoint_alpha`	Waypoint Alpha (Central Aisle)	`(0.613, -2.945, 0.067)`	`python3 scripts/go_to_waypoint_alpha.py`
`waypoint_beta`	Waypoint Beta (East Corridor)	`(7.692, -2.926, 3.139)`	`python3 scripts/go_to_waypoint_beta.py`
`ne_corner`	North-East Corner	`(7.500, 4.800, -2.356)`	`python3 scripts/go_to_ne_corner.py`
`se_corner`	South-East Corner	`(7.500, -4.800, 2.356)`	`python3 scripts/go_to_se_corner.py`
`home`	Home Position / Origin	`(0.000, 0.000, 3.141)`	`python3 scripts/go_to_home.py`

You can also dispatch the robot from the terminal using the argument-based CLI runner:

python3 scripts/navigate_to.py --target position_1
python3 scripts/navigate_to.py --target ne_corner
python3 scripts/navigate_to.py --target home

🎮 Manual Teleoperation Controls

If a USB gamepad or controller is connected:

ros2 launch joy_teleop_simulation teleop_sim.launch.py

Left Joystick: Linear velocity (Forward/Backward)
Right Joystick: Angular velocity (Rotation)
Y / A Buttons: Pitch camera tilt UP / DOWN
X / B Buttons: Yaw camera pan LEFT / RIGHT
SELECT / START: Reset camera to Parked / Default Scan positions
L1 / R1 / L2 / R2: Trigger rack scan triggers for specific warehouse aisles

📊 System Topics Architecture

[ Web Dashboard / Joystick ] ---> /diff_cont/cmd_vel_unstamped ---> [ Robot Base (Gazebo) ]
                                            |
                                            +---> /delivery_status & /delivered <---> [ Delivery Log ]
                                            |
                                            +---> /bot_status (Reached / Succeeded) <---> [ scripts_1/full_tour.py ]
                                                        ^
                                                        |
[ Gazebo Camera ] ---> /camera/image_raw ---> [ active_vision_scanner_simulation ] ---> /annotated_image
                                                        |
                                                        +---> CSV Audit Files (scanned_inventory.csv)

📄 License
