RescueBench / Gym-Rescue

RescueBench is a search-and-rescue (SAR) embodied AI benchmark built on Unreal Engine and UnrealZoo. It provides multi-stage evaluation, progressive difficulty levels, baseline adapters, and expert-trajectory collection tools for embodied agents in complex 3D rescue scenarios. RescueBench was selected as the official evaluation platform for the ATEC 2025 Software Algorithm Track.

Problem Definition

At the beginning of each episode, the agent receives a color image and text description as initial cues. During execution, the agent observes the world from a first-person RGB camera through a Gym-like Python interface, issues real-time navigation and interaction actions, and receives reward feedback from the simulator.

The objective is to use the initial cues to locate the rescue target in a complex 3D scene, perform the required interaction, and deliver the target to a designated stretcher as efficiently as possible. RescueBench standardizes this workflow with expanded SAR stages and unified evaluation scripts.

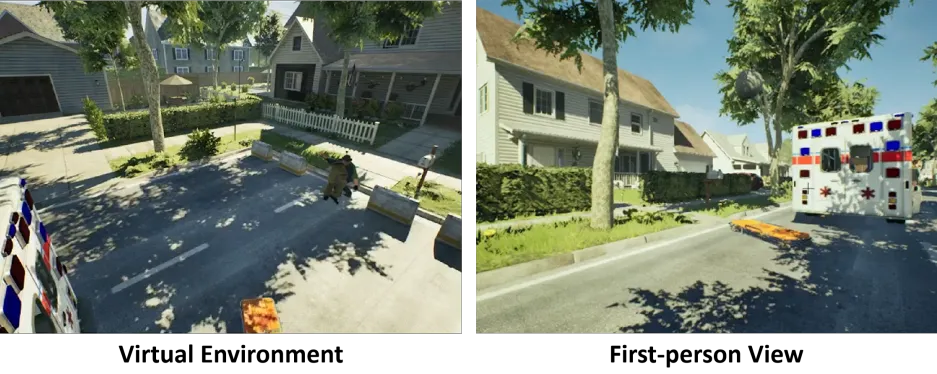

Simulation environment and first-person observations

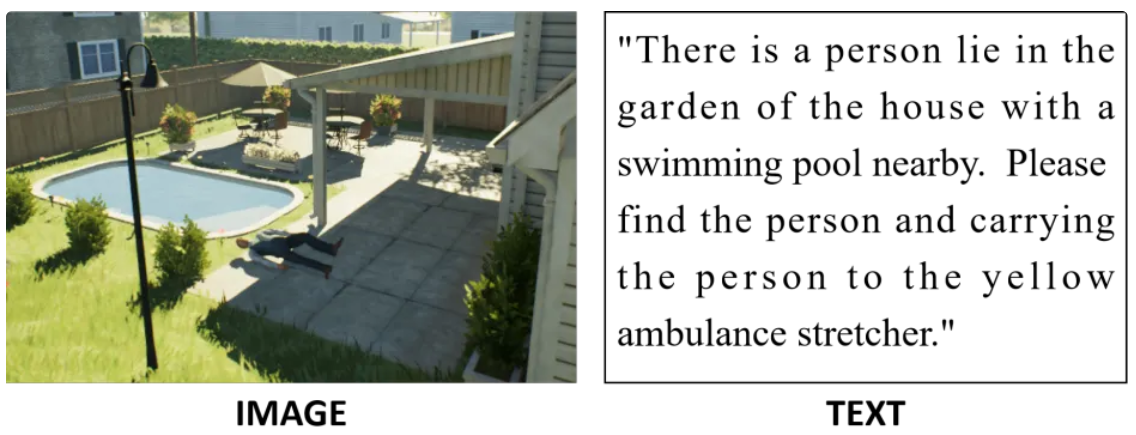

Initial image and text cues

Highlights

• A four-stage SAR benchmark with sequential dependencies.
• Five difficulty levels covering visual clutter, long-range search, indoor-outdoor transitions, and multi-floor layouts.
• A standardized benchmark framework under benchmark/.
• Baseline adapters and runners for multiple embodied navigation models.
• An automatic data collection pipeline under example/RescueDataCollection.py.
• A planned Hugging Face dataset release with approximately 400K expert steps.

---

Demo / Qualitative Examples

The following examples show RescueBench episodes across different maps, agents, and difficulty settings.

Benchmark demos

FlexibleRoom / ROCKET	FlexibleRoom / ROCKET	FlexibleRoom / YOLO Planner
Downtownwest / Uni-NaVid	Forglar_Map / ViNT	Forglar_Map / Uni-NaVid
Tokyo / Uni-NaVid	HongKongStreet / Uni-NaVid	SuburbNeighborhood_Day / ROCKET

Heterogeneous multi-agent cooperation for SAR

SPF UAV Search	SPF UAV Search	SPF UAV Search
SPF UAV Search (First 2s)	Ground agent	Ground agent

---

What Is Released

Component	Path / Link	Description
Gym-Rescue environment	gym_rescue/	Gym registration, UnrealCV interaction, and Rescue task configuration
Benchmark framework	benchmark/rescue_benchmark.py	Unified evaluation entry point, state machine, metric logging, and result export
Baseline runners	benchmark/run_*.py	Thin launchers for individual baselines
Baseline adapters	benchmark/agents/	Adapter layer for third-party embodied navigation models
Benchmark utilities	benchmark/utils/	Collision detection, progress tracking, trajectory similarity, and task state machine
Test point configs	gym_rescue/envs/setting/test_jsonl/	Test configurations for different difficulty levels
Data collection pipeline	example/RescueDataCollection.py	Automatic expert trajectory and interaction data collection
Human control example	example/Rescue_HumanControl.py	Human-control interface for trajectory collection and debugging
Dataset	https://huggingface.co/datasets/WuKui-buaa/RescueBench/tree/main	Oracle trajectories across test dataset

---

Dataset

Item	Link / Description
Collected Oracle trajectories	https://huggingface.co/datasets/WuKui-buaa/RescueBench/tree/main
Contents	Oracle trajectories used in paper
Related pipeline	example/RescueDataCollection.py

The dataset corresponds to the oracle reference trajectories mentioned in the paper. Each episode records a complete rescue trajectory, including navigation to the injured person, rescue interaction, return navigation, and handoff.

---

Installation Strategy

This repository provides the Gym-Rescue environment and the RescueBench evaluation layer. The third-party baselines may require different PyTorch, CUDA, Transformer, or custom dependency versions. We recommend the following order:

1. Clone this repository and the official repositories for the baselines you want to evaluate.
2. Install and validate each third-party baseline following its official README.
3. Return to the RescueBench root directory and run pip install -e ..
4. If dependencies conflict, use separate conda environments for different baselines.

Example:

# 1) Clone this repository
git clone https://github.com/wukui-muc/RescueBench

# 2) Clone third-party model repositories as needed
git clone https://github.com/jzhzhang/Uni-NaVid
git clone https://github.com/robodhruv/visualnav-transformer

# 3) Install each baseline following its official README
# ...

# 4) Install Gym-Rescue / RescueBench last
cd RescueBench
pip install -e .

---

Install Gym-Rescue

Dependencies

• UnrealCV
• Gym
• OpenCV / CV2
• Matplotlib
• NumPy
• Docker / Nvidia-Docker (optional)

We recommend using Anaconda or Miniconda to manage Python environments.

git clone https://github.com/wukui-muc/RescueBench
cd RescueBench
pip install -e .

The installation will install the dependencies declared in setup.py, such as gym==0.26.0, unrealcv, opencv-python, numpy, matplotlib, wget, and docker.

If OpenCV is missing, install it with either conda or pip:

conda install -c conda-forge opencv
# or
pip install opencv-python

---

Prepare Unreal Binary

Before running RescueBench, prepare the Rescue Unreal binary.

Environment	Download Link	Size
Rescue	Download	~8GB

After downloading, unzip the binary into an UnrealEnv/ directory:

UnrealEnv/
└── Rescue_Win64/ or Rescue_Linux/

If permission issues occur on Linux, grant execute permission to the binary:

chmod +x ./Rescue

Set the environment variable before running:

export UnrealEnv=/your/path/to/UnrealEnv

If needed, the binary path can also be specified in the environment configuration files under gym_rescue/envs/setting/env_config/.

---

Baseline Model Repositories

The full third-party model code and weights should be obtained from the official repositories. This repository provides the RescueBench adapters, runners, and evaluation protocol. Large model checkpoints and full upstream codebases should not be committed directly into the main Git history.

Model	Official Repository / Page	RescueBench Adapter
ViNT / NoMaD	robodhruv/visualnav-transformer, project page	benchmark/run_visualnav.py, benchmark/agents/vint_agent.py, benchmark/agents/nomad_agent.py, benchmark/agents/nomad_yolo_agent.py
Uni-NaVid	jzhzhang/Uni-NaVid, Hugging Face	benchmark/run_uni_navid.py, benchmark/agents/uninavid_agent.py
CityWalker	ai4ce/CityWalker	benchmark/run_citywalker.py, benchmark/agents/citywalker_agent.py
OmniNav	amap-cvlab/OmniNav	benchmark/run_omninav.py, benchmark/agents/omninav_agent.py
See, Point, Fly (SPF)	Hu-chih-yao/see-point-fly	benchmark/run_seepointfly.py, benchmark/agents/seepointfly_agent.py
ROCKET-2 / R2ZeroShot	CraftJarvis/ROCKET-2	benchmark/run_r2zeroshot.py, benchmark/agents/r2zeroshot_agent.py

By default, place third-party model workspaces under baseline_model/<ModelName>/, or specify paths through environment variables:

export R2ZEROSHOT_WORKSPACE=/path/to/ROCKET-2/workspace
export APEX_WORKSPACE=/path/to/Apexcode/apex_code

---

Running the Benchmark

Smoke Test

Use the random agent to verify the Unreal binary, Gym interface, and benchmark loop without requiring model weights:

cd benchmark
python rescue_benchmark.py --model random --levels 1 --episodes 1

Baseline Examples

# Uni-NaVid
cd benchmark
python run_uni_navid.py --levels 1 --episodes 1 --render

# ViNT / NoMaD
cd benchmark
python run_visualnav.py --model nomad --topomap-dir ./rescue_topomaps --levels 2 --episodes 1 --render

# R2ZeroShot / ROCKET-2
cd benchmark
python run_r2zeroshot.py --levels 1 --episodes 1 --render

# OmniNav
cd benchmark
python run_omninav.py --levels 1 --episodes 1 --render

# CityWalker
cd benchmark
python run_citywalker.py --levels 3 --episodes 1 --render

See benchmark/README.md for detailed command-line arguments and evaluation options.

---

Benchmark Architecture

Layer	Path	Description
Evaluation core	benchmark/rescue_benchmark.py	State machine, metric logging, result export, and unified Agent interface
Thin runners	benchmark/run_*.py	Model-specific launchers with preset arguments
Agent adapters	benchmark/agents/	Adapters for third-party baselines, including agent_template.py
Utilities	benchmark/utils/	Collision detection, trajectory similarity, progress tracking, and task state machine
Topomap helper	benchmark/collect_rescue_topomap.py, benchmark/agents/topomap_utils.py	Helper tools for topological-map-based methods such as ViNT and NoMaD
Documentation	benchmark/README.md	Metrics, state machine, CLI arguments, and new-model integration guide

Test points are driven by gym_rescue/envs/setting/test_jsonl/level_<L>.jsonl. Each line contains fields such as env_id, agent start location, injured-person location, stretcher/ambulance location, and timeout. The benchmark automatically switches environments based on env_id.

---

Data Collection Pipeline

The automatic data collection script is:

example/RescueDataCollection.py

The pipeline uses an internal navigation controller to execute the full rescue workflow and save expert trajectories. It can be used to construct RescueBench training/validation data, generate topological maps, debug test points, and verify environment navigability.

Inputs

• Unreal Rescue binary and a valid UnrealEnv path.
• Benchmark test points from gym_rescue/envs/setting/test_jsonl/level_<L>.jsonl.
• Environment configuration files under gym_rescue/envs/setting/env_config/.
• Optional level list, output directory, and video settings.

Outputs

• .pt episode files.
• Trajectory states including pose, action, picked flag, reward, and timestamp.
• RGB/RGBD observations saved inside trajectory records.
• Optional .mp4 videos for failed, timeout, or debug episodes.
• Collection logs for timeout, failure, and navigation errors.

Example Command

python example/RescueDataCollection.py \
    --levels 2 3 4 \
    --trajectory-dir /path/to/auto_trajectories \
    --resume-missing \
    --record-video \
    --video-dir /path/to/auto_videos

Before publishing the dataset, the Hugging Face dataset card should include the directory layout, .pt field definitions, train/validation split, relation to test_jsonl, license, usage limitations, environment version, and generation parameters.

---

Reproducing Paper Results

The main paper results are generated by the unified evaluation framework under benchmark/. Full reproduction requires:

1. Installing Gym-Rescue and the Rescue Unreal binary.
2. Preparing the official code and weights for each baseline.
3. Running the corresponding benchmark/run_*.py script.
4. Aggregating TCR, Task Score, Average Time, Collision, Human Similarity, and related metrics.

Template command:

cd benchmark
python run_<model>.py --levels 1 2 3 4 5 --episodes 5 --output ./benchmark_results/<model>

For a quick artifact check, start with the smoke test in the "Running the Benchmark" section.

---

Repository Structure

RescueBench/
├── gym_rescue/                  # Gym environment registration and Rescue task configs
├── benchmark/                   # RescueBench evaluation framework
│   ├── rescue_benchmark.py
│   ├── run_*.py
│   ├── agents/
│   └── utils/
├── example/                     # Data collection and human-control examples
│   ├── RescueDataCollection.py
│   └── Rescue_HumanControl.py
├── baseline_model/              # Optional local third-party model workspaces
├── setup.py
└── README.md

---

Adding a New Model

To integrate a new model:

1. Copy benchmark/agents/agent_template.py and implement a new Agent.
2. Copy an existing benchmark/run_*.py launcher and update model-specific arguments.
3. Call the unified benchmark entry point in benchmark/rescue_benchmark.py.
4. Run a small smoke test to verify action format, rendering, state-machine behavior, and metric output.

See benchmark/README.md for more details.

---

Acknowledgments

_{ATEC logo sourced from the official ATEC website.}

We thank the ATEC organizers for the competition platform and simulator resources.

We also acknowledge UnrealCV, OpenAI Gym, Unreal Engine, and UnrealZoo for the simulation and interaction infrastructure that Gym-Rescue builds on.
