GPT Inner Call (Browcall)

GPT Inner Call is a monorepo project designed to bridge the gap between AI chat interfaces (like ChatGPT and Perplexity), automated workflows, and local Model Context Protocol (MCP) servers.

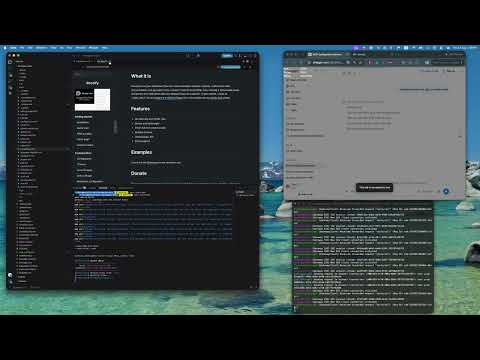

▶️ Watch Demo Video on YouTube

---

🚀 Key Components

The project is organized as a monorepo using Nx:

🧩 Apps

• Browcall Extension: A browser extension (Manifest V3) that injects logic into AI chat platforms (ChatGPT, Perplexity) to facilitate automated interactions.
• GPT Auto API: A Node.js backend server that exposes an OpenAI-compatible /v1/chat/completions endpoint. It communicates with the browser extension to execute requests and retrieve responses.
• MCP Gateway: Remote MCP proxy and routing server that exposes an MCP endpoint (/mcp) for GPT/clients and accepts WebSocket connections from Local MCP Bridges.
• Interface CLI: CLI launcher tool (browcall) to manage and quick-start all backend services (gpt-auto-api, mcp-gateway, local-mcp-bridge). Publishable to NPM as @ducy23061999/browcall-cli.

📦 Packages

• n8n-nodes-browcall-gate: Custom n8n nodes to integrate Browcall directly into your automation workflows.
• Interfaces: Shared TypeScript definitions and interfaces used across the monorepo.

---

⚡ MCP Architecture Flow

GPT / Client
     │
     │ HTTP POST / GET (JSON-RPC 2.0 / MCP Endpoint: http://localhost:8767/mcp)
     ▼
MCP Gateway (apps/mcp-gateway)
     │
     │ Workspace-aware WebSocket routing (ws://localhost:8768)
     ▼
Local MCP Bridge(s)
     │
     │ Stdio / Child Process (JSON-RPC 2.0)
     ▼
Local MCP Server(s) (e.g., @modelcontextprotocol/server-filesystem)

Workspace-aware multi-bridge routing

The MCP Gateway supports multiple Local MCP Bridge connections concurrently, including multiple bridge instances with the same bridgeId.

The routing model is:

User / AI Request
       │
       ▼
   Workspace
       │
       ▼
     Bridge
       │
       ▼
      Tool

• Workspace identifies the project/context where an operation should run.
• Bridge identifies the local MCP connection that provides access to that workspace.
• Scope is the filesystem boundary enforced by the bridge.
• A request with an explicit workspaceId is routed only to bridges registered for that workspace. It never silently falls back to another workspace.
• Multiple bridge connections can belong to the same workspace, allowing duplicate bridge instances without rejecting an existing socket.
• MCP sessions can select a workspace with the workspaceId query parameter or x-workspace-id header.

Example workspace mapping:

mighty-note-backend
  → mac-local-bridge
  → /Users/tranducy/Documents/Project/mighty_note_backend

gpt-inner-call
  → mac-local-bridge-1787664580312-17sl
  → /Users/tranducy/Documents/Project/gpt-inner-call

The execution flow is:

User Request
    ↓
Workspace Resolution
    ↓
Bridge Resolution
    ↓
MCP Tool Execution

---

🛠 Tech Stack

• Monorepo Management: Nx
• Backend: Node.js, Express, WebSocket (ws)
• Frontend/Extension: React, TypeScript, Vite
• Integration: n8n, Model Context Protocol (MCP)

---

🎬 Getting Started

Prerequisites

• Node.js (v18+)
• Yarn or npm
• Google Chrome or Chromium-based browser (for the extension)

Installation

1. Clone the repository:

   git clone https://github.com/gys-dev/browcall-gate.git
   cd browcall-gate

2. Install dependencies:

   yarn install
   # or
   npm install

---

🏃 Running & Development

1. GPT Auto API & Extension

• Start API server:

  yarn serve

  Runs at http://localhost:8766.

• Build Extension:

  yarn build-extension-react

  Artifacts located in dist/apps/extension. Load as an unpacked extension in Chrome.

2. MCP Gateway & Local MCP Bridge

• Start MCP Gateway:

  yarn serve:gateway

  Starts HTTP server at http://localhost:8767 and WebSocket server at ws://localhost:8768.

• Start Local MCP Bridge:

  yarn serve:bridge

  Connects to ws://localhost:8768 and initializes configured local MCP servers (e.g., filesystem MCP).

• Build Gateway & Bridge:

  yarn build:gateway
  yarn build:bridge

3. Interface CLI (Quick-Start All Services)

• Start all backend services via CLI:

  # Build backend services & CLI
  yarn build:all:apps

  # Launch CLI (starts gpt-auto-api, mcp-gateway, local-mcp-bridge)
  yarn start:cli start --all

  # Or launch interactive menu
  yarn start:cli interactive

• Prepare & Publish CLI to NPM:

  # Prepares dist/apps/interface-cli with embedded dist artifacts
  yarn prepare:cli-dist

  # Build, prepare dist, and publish
  yarn publish:cli

---

⚙️ Local MCP Bridge Configuration

Create an mcp-config.json file in the root directory (see mcp-config.sample.json):

{
  "gatewayUrl": "ws://localhost:8768",
  "bridgeId": "mac-local-bridge",
  "clientName": "Local Mac MCP Bridge",
  "mcpServers": {
    "filesystem": {
      "command": "npx",
      "args": [
        "-y",
        "@modelcontextprotocol/server-filesystem",
        "/Users/me/projects"
      ]
    }
  }
}

---

📖 API Documentation

Claude Code (Anthropic Messages API)

• Endpoint: POST /v1/messages (Port 8766)
• Description: Anthropic Messages API specification for Claude Code CLI integration (ANTHROPIC_BASE_URL=http://localhost:8766).

Live SSE Streaming

• Endpoint: GET /sse or POST /sse (Port 8766)
• Description: Real-time live rendering streaming deltas via Server-Sent Events.

MCP Gateway

• Endpoint: POST /mcp & GET /sse (Port 8767)
• Description: Forwards JSON-RPC 2.0 MCP requests (tools/list, tools/call, initialize, ping) to connected Local MCP Bridges with workspace-aware routing.
• Workspace selection: workspaceId query parameter or x-workspace-id header.
• Health Check: GET /health includes active bridge and workspace information.
• Connected Bridges & Tools: GET /bridges

Multi-bridge verification

The project includes an end-to-end test covering concurrent bridge connections, duplicate bridge IDs, workspace routing, tool aggregation, and collision disambiguation:

yarn ts-node scripts/test-multi-bridge-e2e.ts

The verification currently passes with three concurrent bridge connections, including two connections registered with the same bridgeId.

For step-by-step setup guides, see the Claude Code & AI Agent Guide.

---

🤝 Contributing

1. Follow the Knowns Guidelines.
2. Ensure linting passes: npm run lint.
3. Test your changes: npm run test.

---

📄 License

This project is licensed under the MIT License.
