Add a live-resize handle for the Paste Bar - #87

Open
alvst wants to merge 2 commits into
momenbasel:mainfrom
alvst:alvie/pr-live-resize
Open

Add a live-resize handle for the Paste Bar#87
alvst wants to merge 2 commits into
momenbasel:mainfrom
alvst:alvie/pr-live-resize

Conversation

@alvst

@alvst alvst commented Aug 23, 2026

Copy link
Copy Markdown
Contributor

The bar's height is only meaningful on screen, but the only way to change it was a Settings slider whose feedback was a number — and clicking into Settings dismisses the bar. This adds an optional drag handle on the bar itself, and makes the slider preview the size it's describing.

What changed

  • BarResizeGeometry centralizes the height rules (default/min/max, per-display clamping, macOS 26 glass content-frame math) so the persisted preference and the live drag can't disagree.
  • BarResizeHandle is a compact drag target at the top of the bar, with accessibility increment/decrement. A new "Show resize handle on the Paste Bar" setting gates it, off by default.
  • The bar's key monitor steps aside while the handle holds first responder, so Escape and arrows during a drag reach the handle.
  • Dragging the Settings height slider live-resizes the real bar when it's up. When it isn't, a translucent click-through ghost appears on the display under the pointer — a faded BarView behind a dashed outline with a large "N px" readout — and retires ~1.1s after the last change. Showing the bar clears any lingering outline.
  • The slider's unit label reads "px" instead of "pt".

Screenshots

Before:

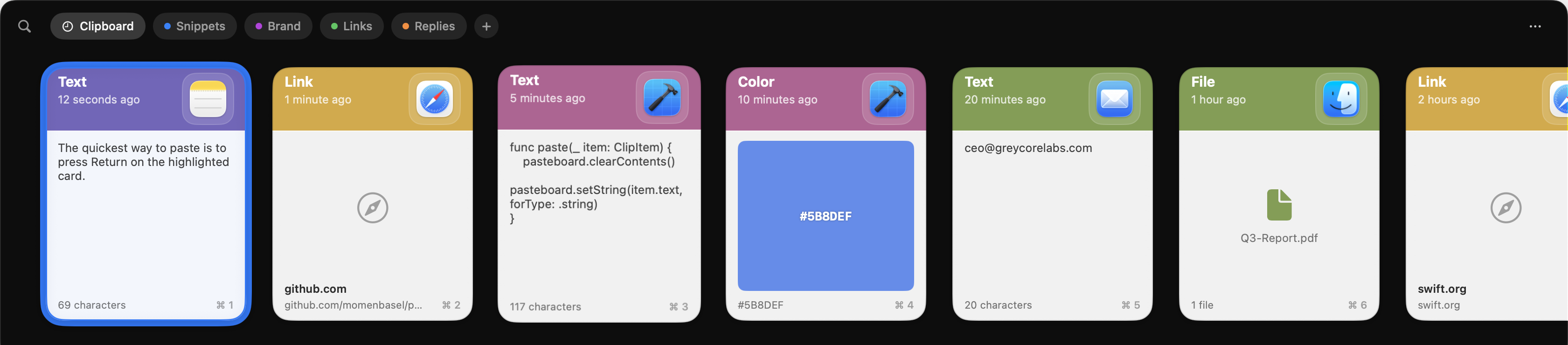

00-baseline screenshots bar.png

After:

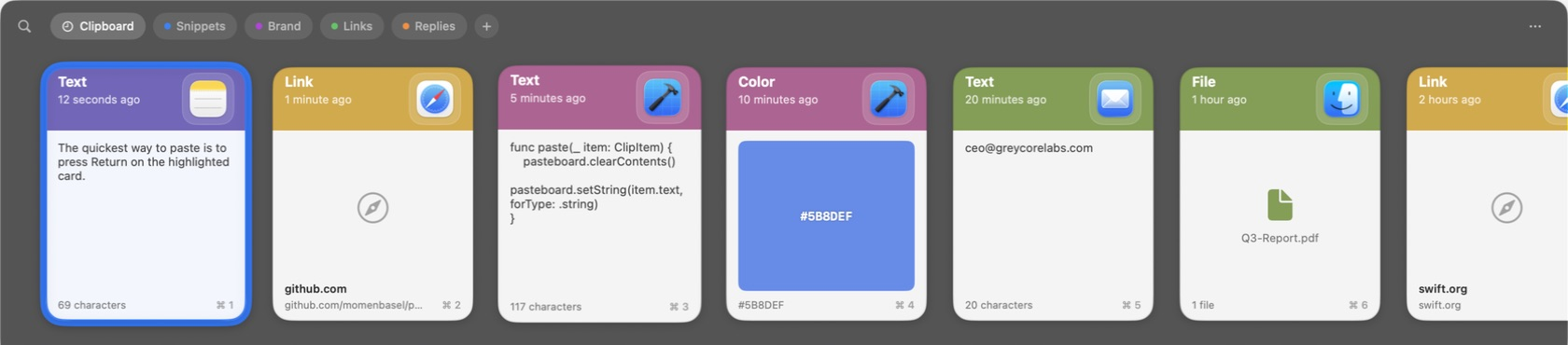

06-live-resize screenshots bar.png

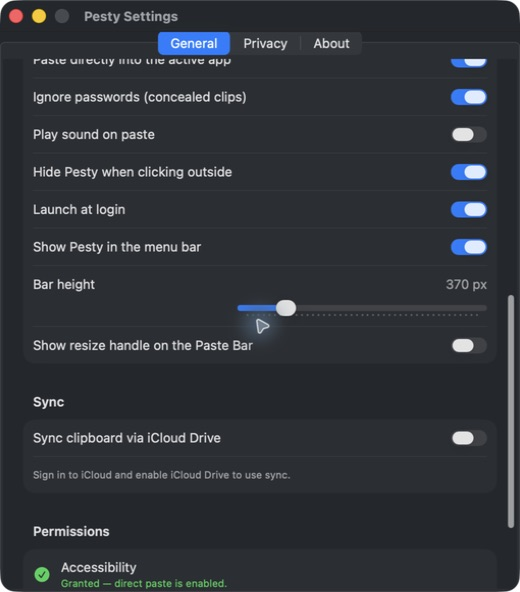

06-live-resize screenshots settings.png

The resize ghost is deliberately not pictured. It's a click-through window
that retires ~1.1s after the last change, so it can't be selected by macOS's
window capture and won't survive a screenshot — describing it is more honest
than shipping a still of the ordinary bar and calling it the ghost.

Notes for review

  • The ghost is sized through this branch's own BarResizeGeometry, so the outline can't promise a height the display won't actually grant.
  • The handle is off by default; with the setting off this is a no-op on the bar's appearance.
  • No dependencies; merges in any order.
  • Out of scope: no width or position adjustment, only height.

This feature should be bundled into v2.

Part of #80.

alvst added 2 commits August 19, 2026 10:22
- BarResizeGeometry centralizes bar-height sizing rules (default/min/max,
  per-display clamping, and the macOS 26 glass content frame math) shared
  by both the persisted preference and the live drag session.
- BarResizeHandle is a compact AppKit drag target (with accessibility
  increment/decrement support) shown in an optional overlay at the top
  of the bar.
- A new "Show resize handle on the Paste Bar" Settings toggle gates it,
  off by default. The bar's own key monitor steps aside while the handle
  owns first responder, so Escape/arrows during a drag reach it directly.

The height slider in Settings previews the same size. Clicking into
Settings dismisses the bar, so a pixel count was previously the only
feedback for a dimension that is only meaningful on screen. Dragging the
slider now live-resizes the real bar when it happens to be up, and
otherwise raises BarHeightGhostController: a translucent, click-through
panel occupying exactly the frame the bar would take on the display under
the pointer, drawing a faded real BarView behind a dashed outline and a
large "N px" readout, and retiring itself about 1.1s after the last
change. Showing the bar hides any outline still lingering.
Matches Alvie's Pesty's wording exactly - the value is a raw point
count either way, this was just a wording mismatch caught during
visual parity review of the settings redesign.
