markdown-preview-styles

Local-only VS Code extension that customises the built-in markdown preview, globally across every workspace. Never published; sideloaded via symlink.

Two things it does:

1. Injects custom CSS into every preview (markdown.previewStyles).
2. Prepends an Obsidian-style Properties table above any markdown file with YAML frontmatter, plus a source-line gutter and other tweaks (markdown.markdownItPlugins).

Install / re-install

The extension is symlinked into VS Code's extensions directory - the folder name must match <publisher>.<name>-<version> from package.json. If the symlink is missing (new machine, accidental deletion, or after a version bump):

ln -s ~/Dev/vscode-extensions/markdown-preview-styles \
      ~/.vscode/extensions/local.markdown-preview-styles-0.2.0

Remove any older versioned symlinks (e.g. local.markdown-preview-styles-0.0.1) so VS Code doesn't load both. VS Code detects the changed extensions folder and prompts to reload - accepting that is enough; a full Cmd+Q is rarely needed.

Related VS Code settings

The extension's defaults assume a few preview settings. breaks and frontMatter are required changes from stock; the others are recommended pairings or defaults noted for awareness:

• "markdown.preview.breaks": true - renders consecutive source lines as separate lines. Without this, a single newline collapses into a space within the same paragraph.
• "markdown.preview.frontMatter": "hide" - VS Code's stock default is table, its own frontmatter table. Anything but hide renders VS Code's version (table or code block) as well as the extension's Properties table, so the frontmatter shows twice.
• "markdown.preview.lineHeight": 1.7 - the reference pairing for the bundled body face (iA Writer Quattro reads best a touch looser than the 1.6 stock default). Note .mps-blank-line is calibrated to 1.06lh against 1.6; values further from that shift the gutter rhythm.
• "markdown.preview.fontSize": 15 - this repo is calibrated at 15 (VS Code's stock default is 14). The rem/em-based type and spacing in style.css scale with whatever you set here.
• "markdown.preview.linkify": true (default) - auto-links bare URLs in body text; complements our Properties-value URL linking.
• "markdown.preview.markEditorSelection": true (default) - shows the editor-caret line in the preview. The hover-indicator variant is suppressed (line numbers occupy that pseudo-element); the active-line is instead highlighted by brightening its gutter line number, same convention as the editor.
• "markdown.preview.doubleClickToSwitchToEditor": false - VS Code defaults this to true; disable if you'd rather double-click select text in the preview than jump back to the editor. The visible line-number gutter still lets you eyeball the source row.
• "markdown.preview.typographer": false (default) - enable if you want smart quotes ("x" → "x") and en/em dash auto-conversion.

Example

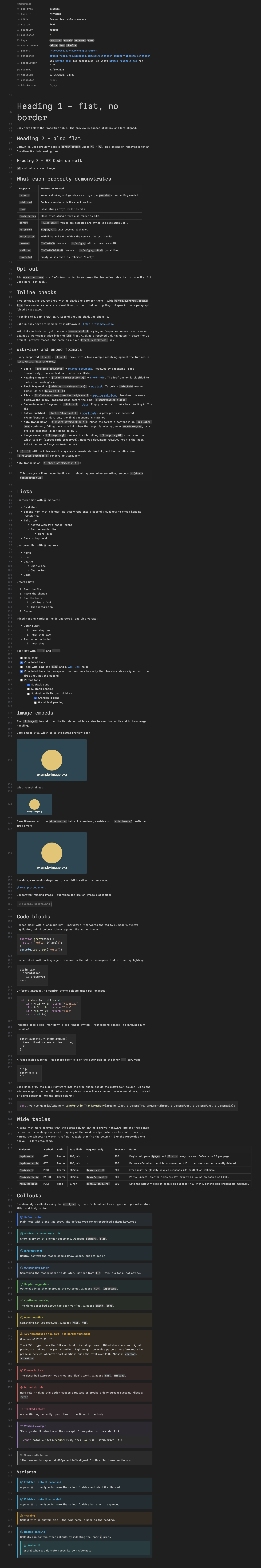

example.md at the project root exercises every Properties-table feature in one file. Open the preview with Cmd+K V after install to verify everything renders.

Current rules

• Caps preview width at 880px and left-aligns content (no centring).
• Lets wide code blocks and tables break out of that column into the free space to their right - sizing to their content, capped at the window edge - so long code lines and many-column tables aren't squashed to the prose measure. Content that already fits, and code/tables nested in callouts or lists, are untouched.
• Removes the default border-bottom under h1 and h2 for a flat-heading look.
• Headings render in Martian Mono Light (bundled, SIL OFL 1.1 - fonts/OFL-martian-mono.txt), a light monospace display treatment: weight 300, a full heading scale (h1 40px down to h6 12px at the default root), theme-default colour. Body prose renders in iA Writer Quattro (bundled, SIL OFL 1.1 - fonts/OFL-ia-writer-quattro.txt, the variable cuts) - note this deliberately overrides the markdown.preview.fontFamily setting. All the knobs (faces, weight, tracking, sizes) are CSS custom properties in the typography block at the top of style.css.
• Replaces VS Code's source-line hover indicator with permanent 1-indexed line numbers in a 4em left gutter; numbers also appear next to blank source lines.
• Default block margins on body content are zeroed so vertical spacing comes from blank-line placeholders - one source line ≈ one visual row, matching the editor's gutter rhythm (list items additionally step apart by a small margin so multi-line items read as units).
• Inline code (backtick-quoted spans) shrunk to 0.9em. Fenced code blocks inside <pre> are untouched.
• Renders YAML frontmatter as a Properties table with type-aware icons (text / list / tags / date / datetime / checkbox) and pill chips for tags and string arrays. Non-editable (v1).
• Resolves [[wiki-links]] against a workspace-wide index of every .md file under the open folders, plus any extra roots configured in settings. Supports the full Obsidian/Foam syntax matrix - see Wikilink syntax below for the forms and resolution rules.
• Renders Obsidian-style image embeds (![[image.png]], with optional ![[image.png|N]] for a px width). Bare filenames are retried under attachments/ on first error. Failed loads show a dashed placeholder with the original path.
• Renders ![[note]] (non-image) embeds inline as transclusions - the referenced note's body (frontmatter stripped) renders inside an mps-embed-note container. Optional #heading or ^block fragment narrows the embed to that section. Recursive embeds are capped at depth 2 to prevent cycles.
• Add mps-hide: true to a file's frontmatter to suppress the Properties table for that file.
• Makes task-list checkboxes clickable in the preview: clicking a rendered - [ ] / - [x] checkbox flips the marker on the source line (and saves, when the document had no unsaved changes). Requires an extension that renders task-list checkboxes in the preview (e.g. Markdown All in One) - this extension makes existing checkboxes interactive rather than rendering its own. Checkboxes are also keyboard-operable (Tab to one, Enter toggles). The click routes through a vscode:// deep link; VS Code asks once per machine to allow the extension to handle its URIs.
• Works around an upstream VS Code bug where revisiting a preview tab shows stale content if the document changed while the tab was visible: the extension forces one preview refresh when a preview tab for a changed document becomes active.
• Works around another upstream bug where, in a split with a preview-as-editor tab, clicking into the text editor yanks its viewport to the preview's last scrolled line (losing the point just clicked): when a viewport jump right after a mouse click strands the clicked caret off-screen, the extension restores the pre-jump viewport. Keyboard flows ("Reopen Editor With Text Editor" landing at the preview's position) are untouched.

Wikilink syntax

Form	Renders as
[[name]]	Link to name.md (resolved workspace-wide by basename).
[[name|alias]]	Link to name.md, displaying alias. Pipe-after-name (Obsidian/Foam convention - not GitHub Wiki's pipe-before-name).
[[name#heading]]	Link to name.md and scroll to #heading.
[[name^block]]	Link to name.md and scroll to the ^block-marked paragraph or list item.
[[name#heading|alias]]	Combined - canonical fragment-before-pipe order.
![[image.png]]	Inline image (with optional |N for width).
![[name]]	Inline transclusion of the referenced note's body.
![[name#heading]] / ![[name^block]]	Inline transclusion narrowed to that section/block.

Reverse-order combined forms ([[name|alias#heading]]) are not supported - the trailing #heading becomes part of the alias display text and there is no anchor jump. The canonical fragment-before-pipe order matches Obsidian and the markdown-it-wikilinks parser.

Resolution is case-insensitive on basename. Multiple matches resolve by shortest path (fewest separators), then alphabetical within the same depth. When indexing multiple roots (workspace folders + extraIndexRoots), entries are ordered alphabetically by root path first - so shortest-path only carries meaning within a single root.

To pin a block as a scroll target, append ^my-id at the end of a paragraph or list item. The extension strips the marker from the rendered text and adds id="mps-block-my-id" to the wrapping element so links can scroll to it.

Settings

All settings live under markdownPreviewStyles.wikilinks.*:

Key	Default	Purpose
enabled	true	Master switch. Off = document-relative resolution (no workspace index).
extraIndexRoots	[]	Extra folders to index alongside the open workspace. Useful when you keep notes outside the workspace (e.g. ~/Documents/notes). Tilde-prefixed paths are expanded. Missing paths are skipped with a warning.
embedNotes	true	Whether ![[name]] for non-image targets renders inline (true) or as a link with the mps-embed-fallback style (false).
embedMaxBytes	262144 (256KB)	Size cap for inline transclusion. Targets at or above the cap degrade to a link; 0 disables transclusion entirely.

The four keys appear in VS Code's Settings UI under "Markdown Preview Styles → Wikilinks".

Supported frontmatter

Top-level scalars (string, boolean, null, ISO date YYYY-MM-DD, ISO datetime YYYY-MM-DDTHH:MM[...]), block-style arrays (tags: followed by - foo), and inline arrays (tags: [foo, bar]). Numeric values stay as strings to preserve IDs like task-id: 20260101. Nested objects, multiline strings, anchors, and flow maps are not supported.

Date-only values are formatted without timezone shift so the day always matches what's in the YAML.

Known limitations

• Workspace index is built asynchronously on activation. Open previews are refreshed automatically once the index finishes building, but there's a brief window where wikilinks render with document-relative hrefs before the refresh fires.
• Watcher behaviour on iCloud-synced roots is noisy. If you point extraIndexRoots at an iCloud folder, the file watcher fires on sync events as well as edits. Index correctness is unaffected; CPU may briefly spike on heavy sync activity.
• Wiki-link <a> clicks go through VS Code's webview link handler. Non-existent targets (no index match and no document-relative file) surface a "file not found" toast rather than navigating anywhere - no in-preview broken-link styling.
• Checkbox toggling depends on a checkbox-rendering extension. Without one (e.g. Markdown All in One), task lists render as plain text and there is nothing to click. The toggle round trip (deep link → source edit → re-render) also lags a genuine click slightly; the box flips optimistically and the render confirms it. Checkboxes inside ![[note]] transclusions are deliberately inert - their line numbers belong to the embedded file, not the previewed one.

Development

See CLAUDE.md for the reload-by-change-type matrix, architecture gotchas, tests, and project conventions.
